Air Cooled Heat Exchangers

Air Cooled Heat Exchangers

API 661 Compliant

Fully bespoke design to suit client specifications

Vertical or Horizontal tube blocks

Direct coupling or belt driven

ATEX motors for hazardous areas

Dampers for fan redundancy

Bonnet or plugged headers

Parallel or series process flow depending on pressure drop

Winterised solutions

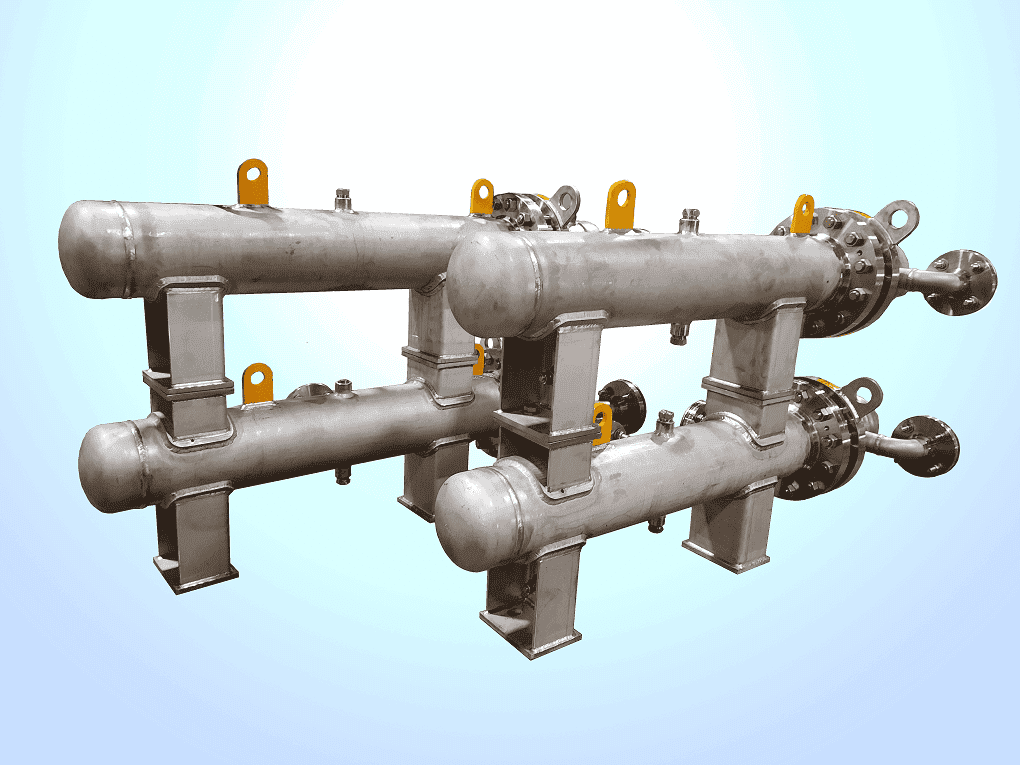

Shell and Tube Heat Exchangers

Shell and Tube Heat Exchangers

API 660 design

High Pressure applications up to 400bar(g)

ASME U Stamp / PED cat I-IV

PV Elite Mechanical Calculations


Range of materials, CS, SS and Copper - Painted for harsh environments

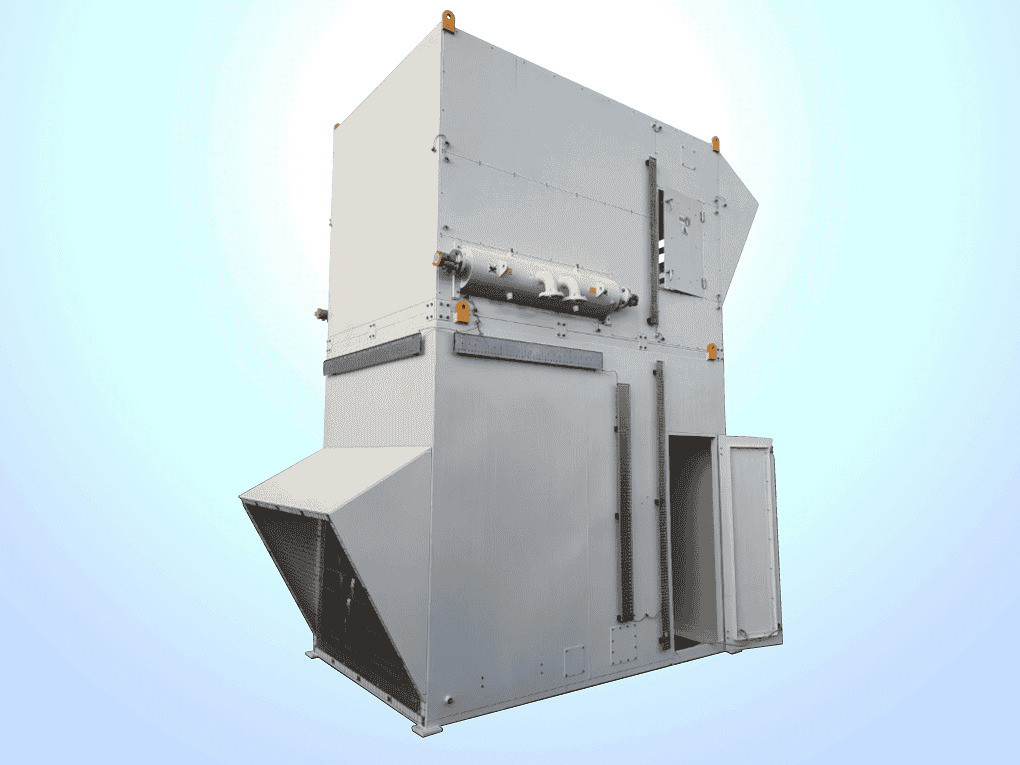

Industrial Cooling

Photo of an industrial heat exchanger

Industrial Cooling

Designed and built for heavy duty applications

Complies with relevant standards i.e., PED/ATEX/ASME VIII if required

Wide range of construction material options

Fully tested before despatch

Can be designed to meet size and weight constraints

Like for like replacement equipment can be supplied

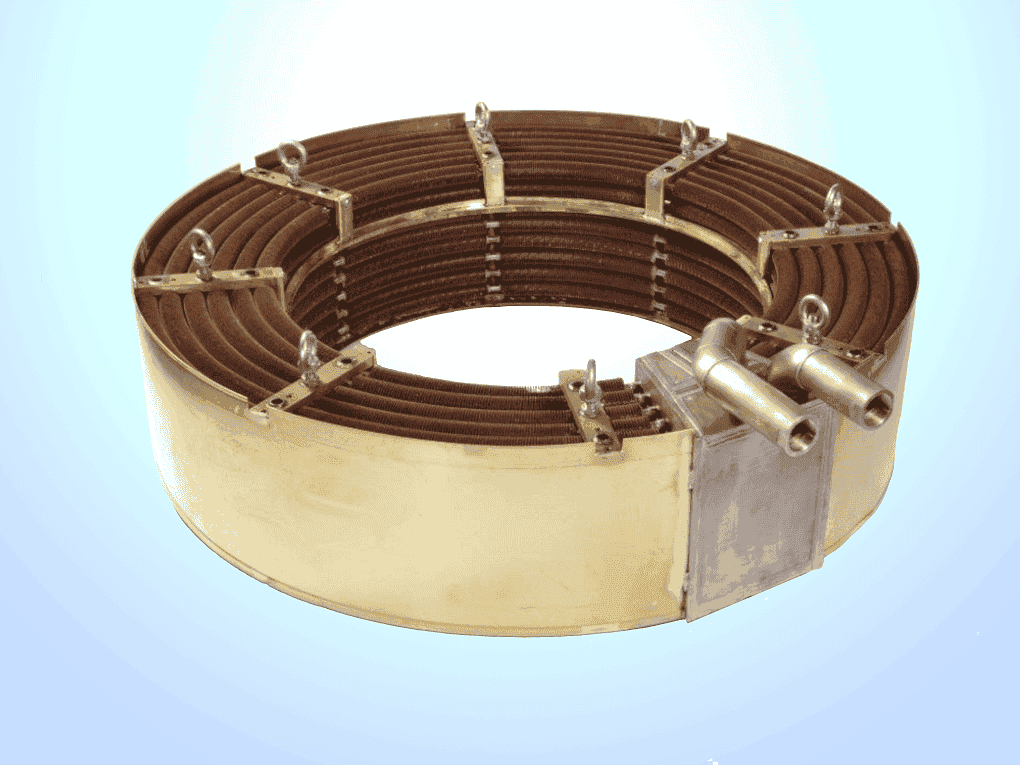

Bearing Coolers

Bearing Coolers

We offer a design service to create a cooler to suit your specific thermal duty needs and the installation using a range of base materials and fin types including CS, SS, Duplex SS, Copper, CuNi, Brass and Aluminium. Coolers can be a plain inserted tube, a twisted, coiled finned tube or multiple coils

Coolers for applications such as:

Gearbox coolers

Flue Gas Waste Heat Recovery

Hydraulic line coolers

Air heaters

Anywhere with fluid, air cooling, or heating is needed

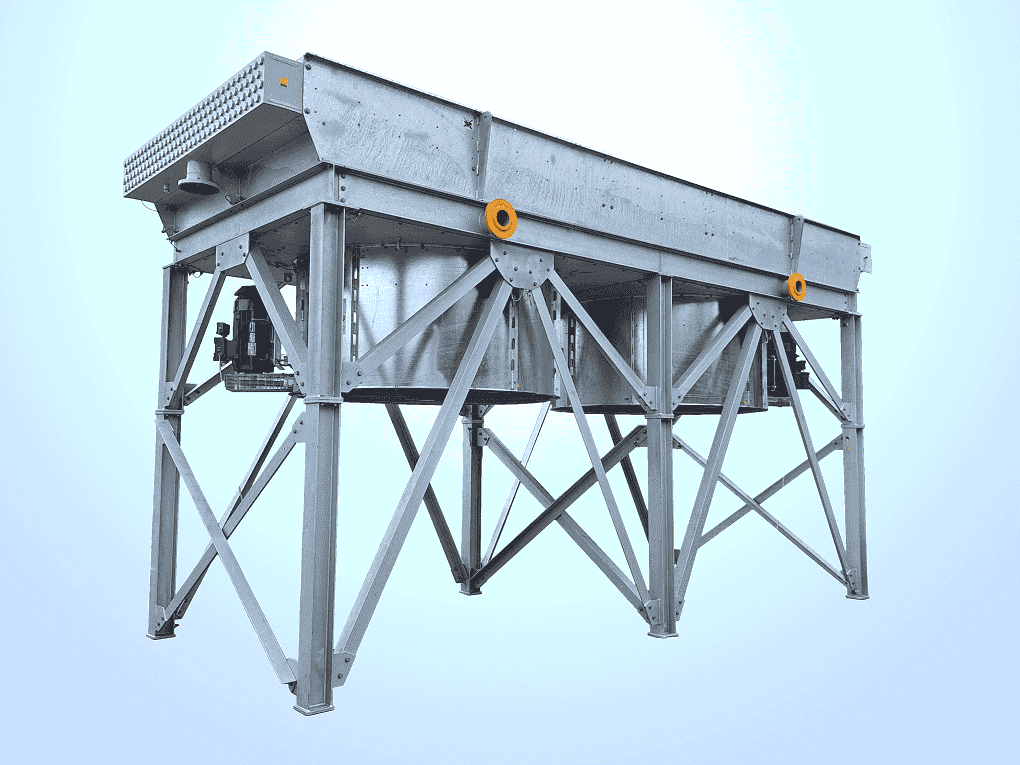

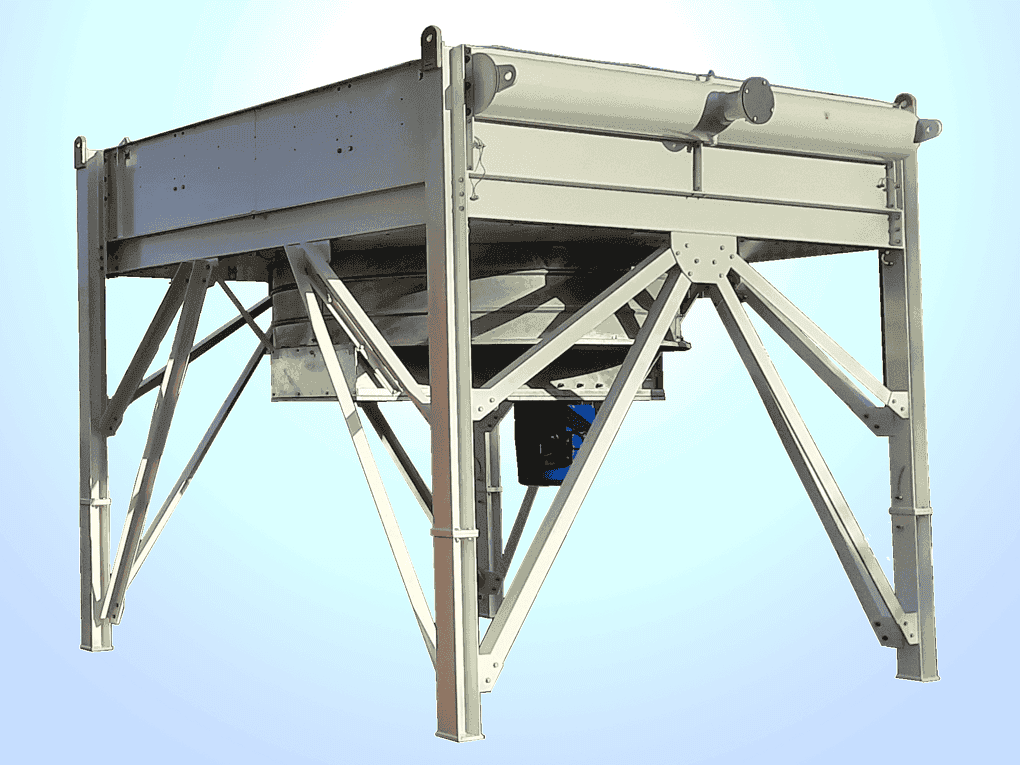

Turbo Machinery Cooling

Photo of an Turbo Machinery Cooler

Turbo Machinery Cooling

Project specific design solutions for gas turbine, pump and compressor applications

Gas turbines – lube oil, synthetic oil, seal / purge air, combustion air inlet chiller

Pumps – lube oil, working oil (for variable speed drive applications) and mechanical seal barrier fluid cooling

Compressors – lube oil, jacket water, intercoolers, aftercoolers

Services can be combined to minimise plot area

Different materials of construction to match service and climatic demands

Service redundancy can be incorporated if required

Low noise solutions are available

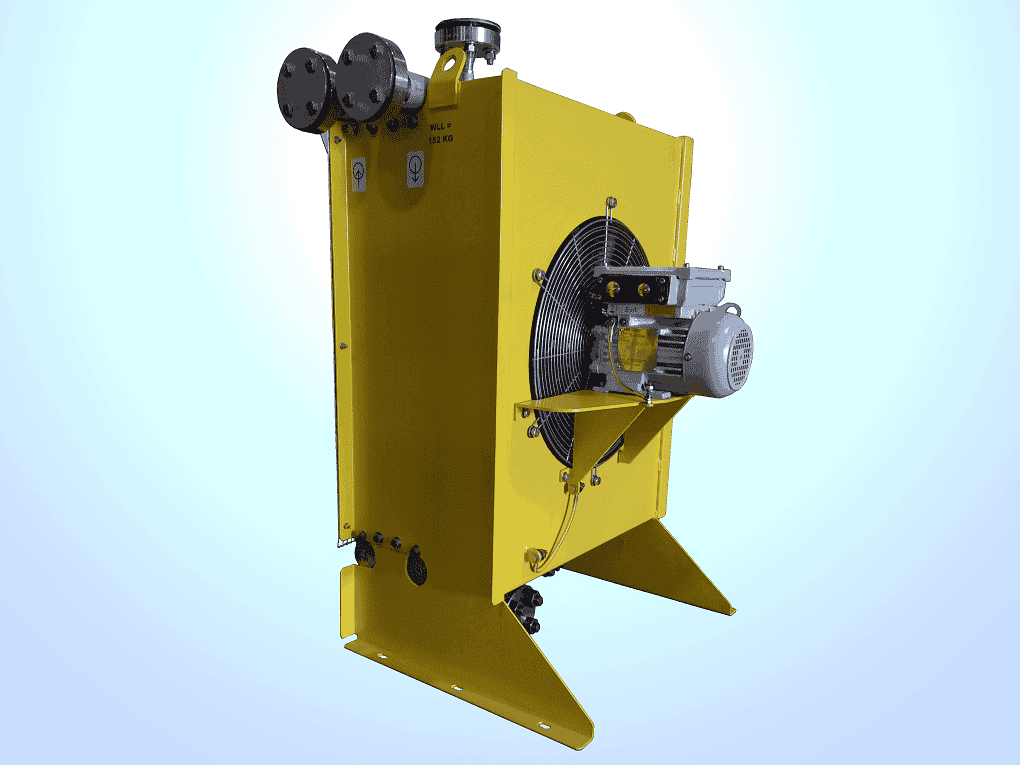

Seal Coolers

Seal Coolers

Bespoke designs to clients thermal and mechanical requirements

Natural Convection (straight tube or coil) and Air Blast options

Pressure parts in Stainless steel 316/L, Duplex Stainless steel and Super Duplex Stainless steel

External extended surfaces – Aluminium ribbon type, Stainless Steel, Duplex or Super Duplex wire loop type.

Direct drive electric motors – ABB, Siemens, WEG, CEMP to IEC Ex, NEMA standards, compliance with customer specs.

In-house manufacture including machining, coded welding, RT, UT, MPI and DP with PMI, in-house painting, hydraulic testing and flushing.

ASME VIII with U stamp, EC Directive compliant (CE/UKCA marked), international standards and client specifications considered with international approvals – e.g. CRN (Canada), DOSH (Malaysia) as required

Automotive Coolers

Automotive Coolers

High efficiency wire fin design (Aluminium or Copper)

Finning applied directly onto the tube (Can be part of the fluid line)

No intermediate joints required

Capable of withstanding high pressures (base tube limited)

Material options include, Aluminium, carbon steel (plated) and stainless steel

Can be supplied straight or bent - end formed or plain tube

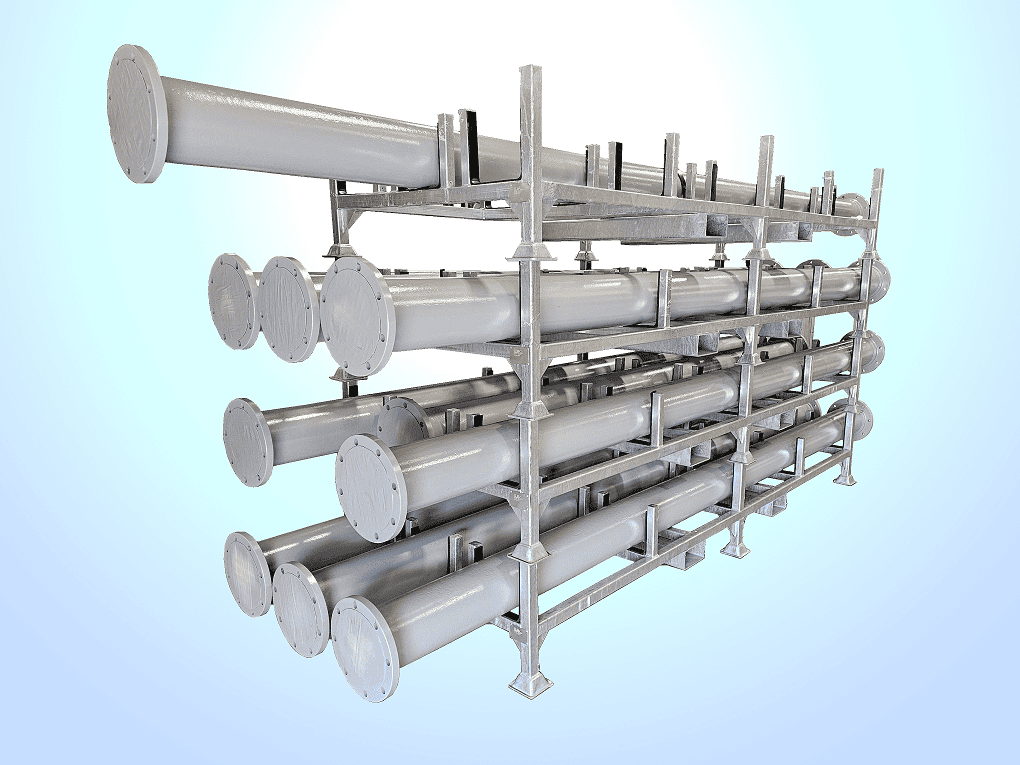

Fabrication Services

Fabrication Services

Large bed plasma cutter

CNC axis mills & turning centre

Brazing / Silver soldering

TIG, MMA, FCAW & MIG/MAG welding

Coded welders to ASME IX

Painting to NACE standards

ASME / API pressure vessels



Complete SHE ‘Legacy’ Coolers going back over 50+ years!

Replacement tubeblocks for SHE Air Blast Coolers

Replacement tubestack bonnet, shell assemblies etc. for SHE Shell & Tube coolers

Complete fan & motor assemblies, motors, impellers, bearings, and drive belts

Header gaskets, header plugs and washers

Shell & Tube cooler gaskets and seal kits
